Introduction
Reverse engineering has emerged as an essential method in contemporary product design—particularly in the absence of original design information. Engineers can reverse engineer a part’s geometry using optical or laser scanning, and subsequently recreate it as editable CAD models, through the application of reverse engineering methods. This 3D scanning-to-CAD process enables firms to redesign old components, enhance product performance, or reproduce worn-out parts for which design information is not available. In this blog, we will guide you through the reverse engineering process from scanning a component through to producing a working CAD model that is ready for manufacture or simulation.
Step 1: Preparing the Part and Preparing the Scan
The first step in reverse engineering is preparing the physical component. Clean the surface and apply a matte spray if needed to avoid glare. Select the right scanning technology—structured light scanners work well for small intricate parts, while laser trackers suit larger industrial geometries. Position multiple scans to cover all angles, ensuring complete data capture. During this stage, don’t worry about holes or noise: your goal is to collect a comprehensive point cloud dataset.
After scanning, import the data into your software. Now the journey from 3D scanning to CAD model reconstruction starts.
Step 2: Processing the Scan Data
Post-scan, the raw point cloud can contain noise, outliers, or missing areas. Apply cleaning tools—statistical filtering, smoothing, hole filling—to improve data quality without losing important features. Then, triangulate the point cloud to create a mesh model (usually in STL format). This mesh forms the visual foundation for the reverse engineering process.
Refinement of the mesh is essential: decimate polygons in order to keep performance, fix manifold errors, and preserve watertight geometry. A clean mesh will ensure higher success when importing into CAD software for reconstruction.
Step 3: Converting Mesh to CAD
Having a pre-prepared mesh, start the process of reconstructing the CAD model. Open the mesh using appropriate CAD applications or reverse-engineering software (such as Geomagic, SolidWorks ScanTo3D, or Fusion 360). Begin by orienting the scan coordinate system to your CAD workplane to allow for dimensioning and feature recognition.
Recognize dominant geometric characteristics—planes, cylinders, holes, and complicated curves—then replicate them with intrinsic CAD commands. Instance-wise, draw cylindrical axes for bore features or refer to planar surfaces to redefine sketches. Employ lofts, sweeps, and boundary patches to replicate organic shapes. Rebuild parts module by module: develop sketches, extrude or revolve features, add fillets, and employ pattern tools as appropriate.

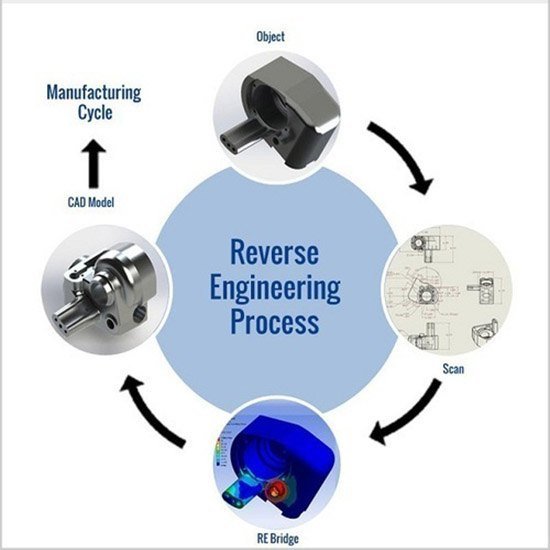

At this stage, you’re effectively implementing the reverse engineering workflow—a cycle of compare-analyze-model-refine—to create accurate, parametric, manufacturable CAD models.
Step 4: Verification and Output
After building the CAD model, it’s essential to verify its fidelity against the original scan. Use deviation analysis tools to color-map differences between the CAD model and mesh, targeting tolerances specific to your application. This ensures your CAD model reconstruction reflects real-world dimensions accurately.
Once validated, save the model as STEP or IGES for manufacture, simulation, or redesign. Keep a clean feature tree so subsequent changes can be traced. Record the process, such as scan resolution, software tools employed, and deviation results, so the reverse engineering process is reproducible and auditable to colleagues or customers.
Conclusion
Reverse engineering, from 3D scanning through CAD models, allows you to recreate digital copies of physical parts for redesign, legacy maintenance, or design improvement. By using a systematic reverse engineering process, you achieve accuracy and parametric control in your recreated models. From redesigning aged tooling, copying antique components, to enhancing a design’s manufacturability, mastering mesh cleanup, feature extraction, and verification are secrets to success.
